BitQuery
BitQuery is a GitHub1 API driven and D32 based search engine for open source repositories (OSR).
BitQuery pursues two main objectives:
- Provide an automatic OSR categorization system for data science teams and software developers promoting discoverability, technology transfer and coexistence
- Establish visual data exploration and topic driven navigation of GitHub users and organizations for collaborative reproducible research (CRR) and web deployment
The BitQuery architecture consists of three abstraction layers, following the visual analytics approach3:
- GitHub API based parser layer (Data Management)
- Smart Data layer (Analysis)
- D3-3D Visu layer (Visualization)
1. GitHub is the world's largest code hosting platform for version control and collaboration.
2. D3.js is a JavaScript library for producing dynamic, interactive data visualizations in web browsers.
3. Visual analytics: Definition, process, and challenges. Lecture notes in computer science, 4950:154–176 (D. Keim et al., 2008)
BitTrinity
BitTrinity is the driving technology of BitQuery that allows to retrieve the GitHub data, postprocess and export them to the appropriate visualization schemes. It comprises the following main components:
- GitHub API based parser layer: extracts data from GitHub
- Smart Data layer: transforms Big Data into value, processing the data semantics and metadata via dynamic calibration of metadata configurations, text mining models and clustering methods
- D3-3D Visu layer, or BitQuery Visual Analytics application (VA-App), which is powered by two JavaScript libraries for producing dynamic data visualizations in web browsers: D3.js and Three.js.
The API Parser Layer and Smart Data Layer have been programmed in R using various CRAN packages, see also the References. The design and implementation of the D3-3D Visu layer is described in detail in the VA-App section.
BitQuery VA-App
BitQuery VA-App creates an interactive network visualization that allows to overview, sort, zoom, filter and query the data. Additional components such as Legends, Tooltip and Search field provide detailed information on chosen subsets or single data nodes.
BitQuery VA-App was designed in full compliance with the visual analytics mantra:
"Analyze first - show the important - zoom, filter and analyze further - details on demand."
The VA-App has been programmed via JavaScript and CoffeeScript by means of D3.js, Three.js and some npm packages. The (simplified) component diagram of the software infrastructure is given below. For more information, see d3VA - D3 for Visual Analytics: source code, libraries, components.

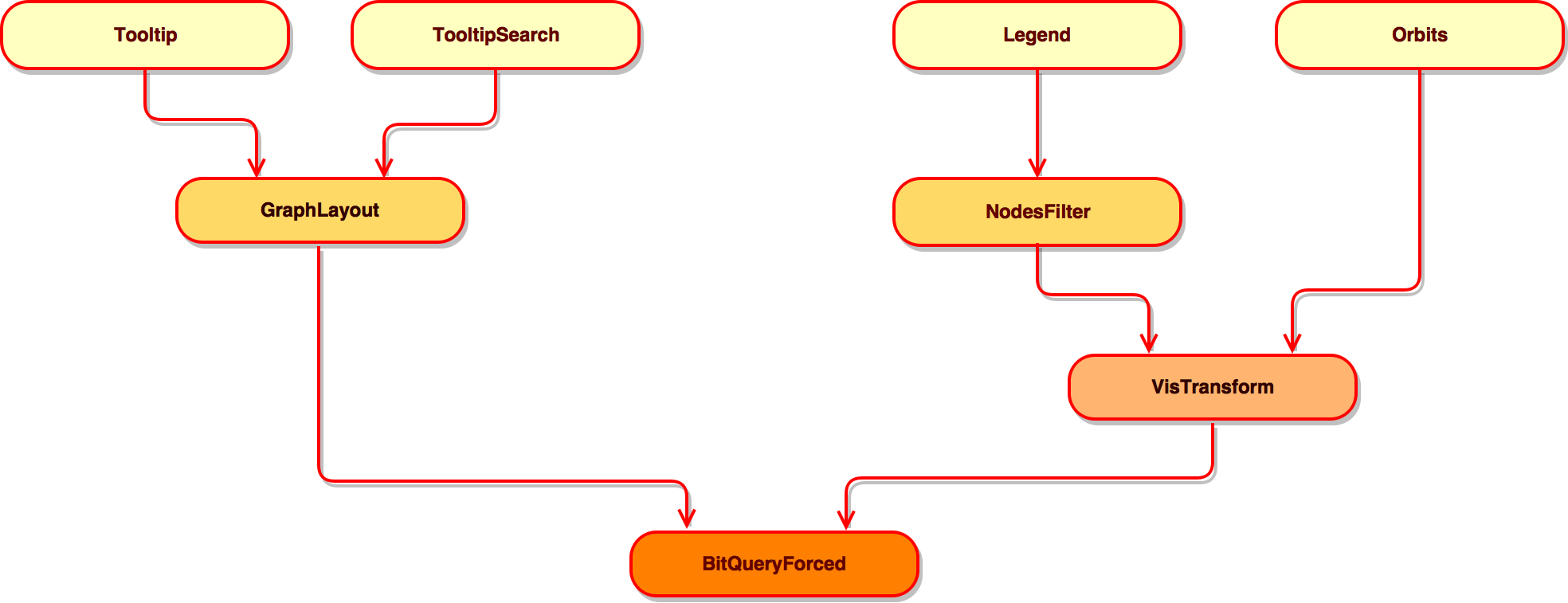

BitQuery VA-App infrastructure, implemented via CoffeeScript classes
Main VA-App components

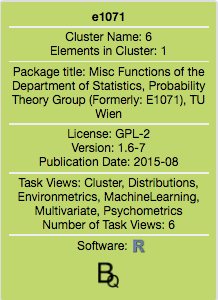

Tooltip
Details on demand
Shows detailed information on the chosen data node, e.g. package title, version etc.

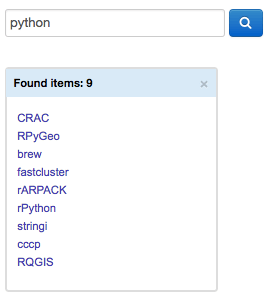

TooltipSearch
Zoom and filter
Various Search parameters, e.g. package or author name.

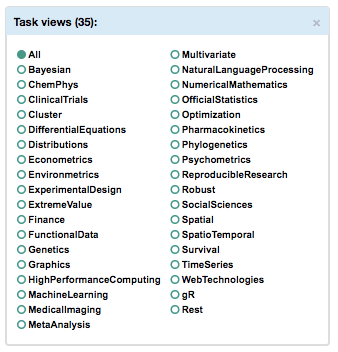

Legend
Zoom and filter
Interactive Legends which enable to filter and project data subsets according to various dimensions and parameters.
Orbits
Overview
Flexible layout settings for the radial graph scheme (by orbits).

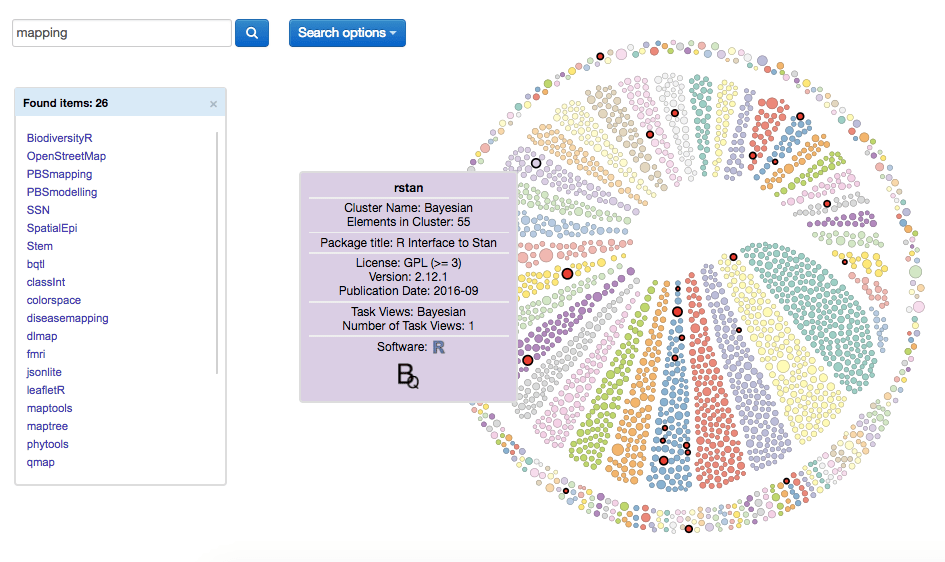

GraphLayout
Overview
Highly customizable graph layout which visualizes selected data.

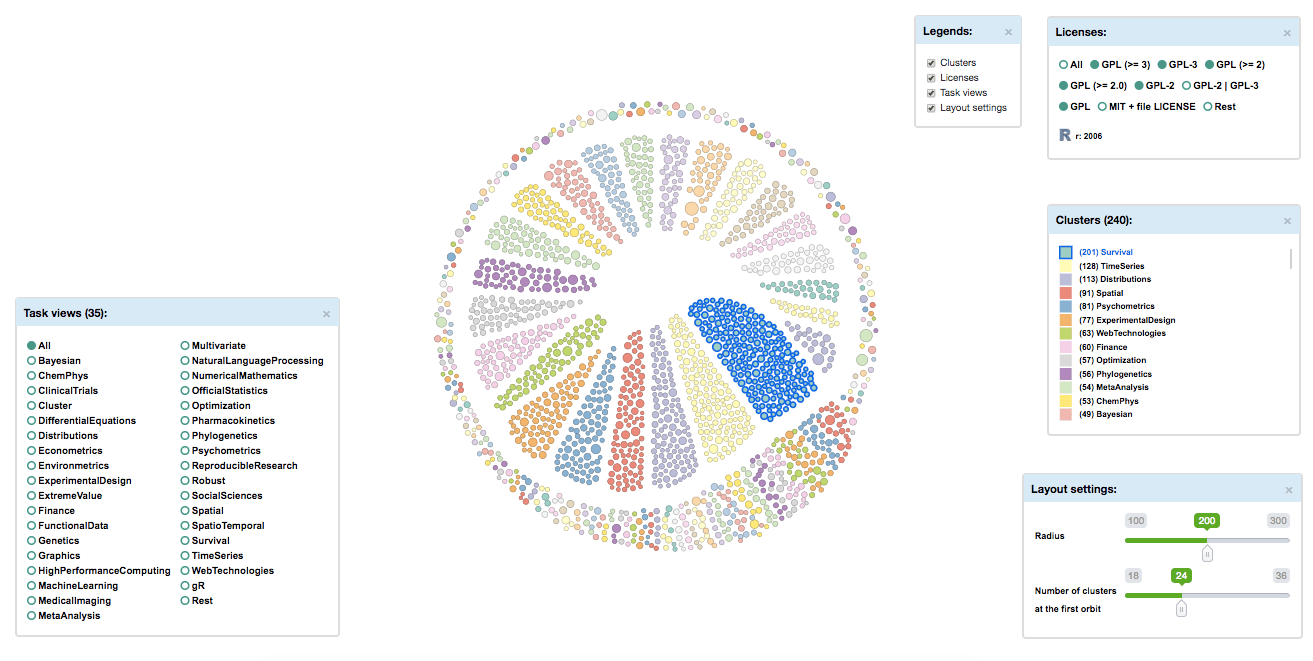

NodesFilter
Zoom and filter
Creates and organizes the legends and performs interactions between them and the graph layout.

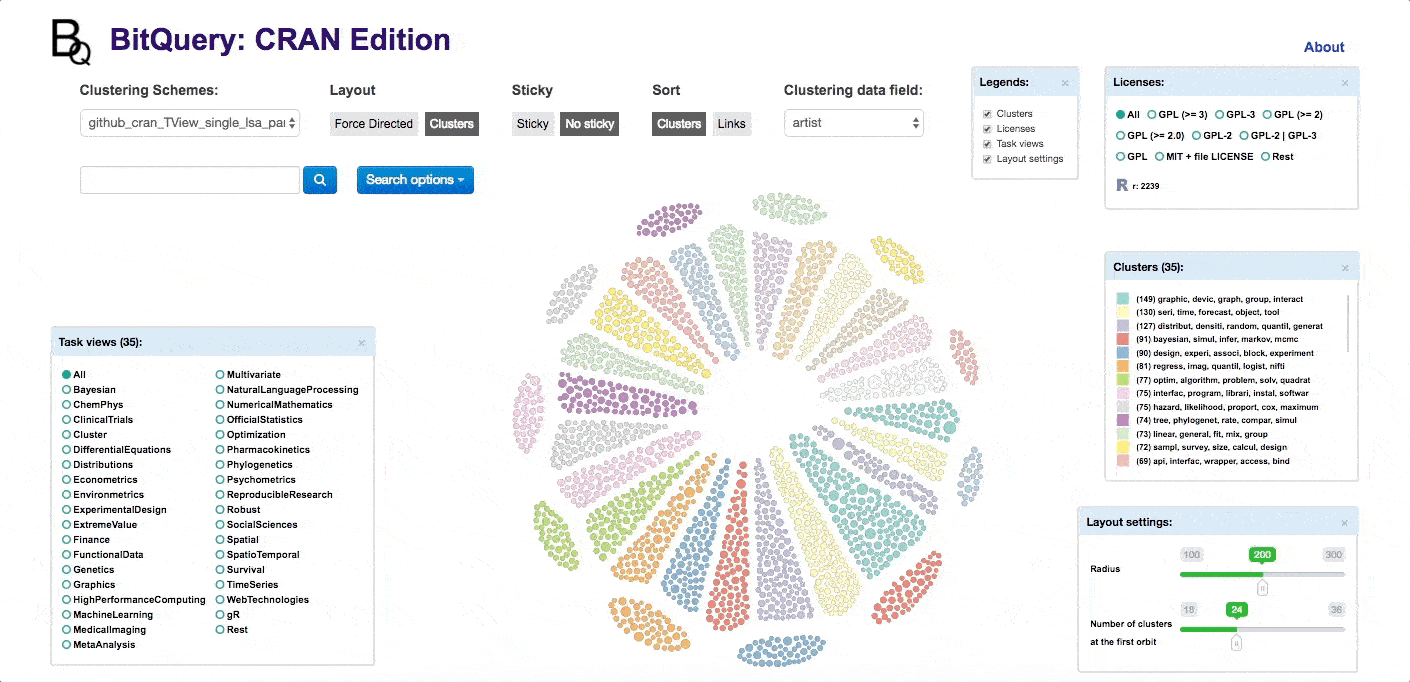

VisTransform
Overview
Highly customizable graph layout which visualizes selected data.

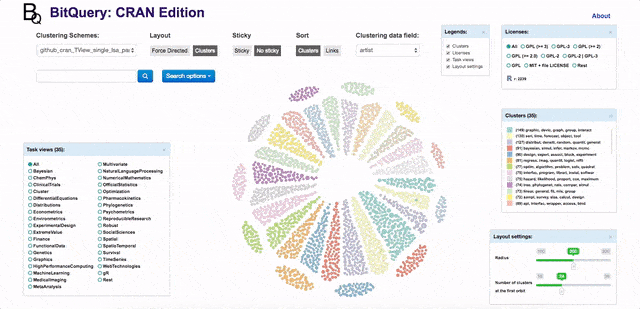

BitQueryForced
Overview
Creates an interactive network visualization that allows to overview, sort, zoom, filter and query the data (the animation will start when you move the mouse over the image).
References
Publications and working papers
- D3 data-driven documents, IEEE Transactions on Visualization & Computer Graphics, 17(12):2301–2309, M. Bostock, V. Ogievetsky, J. Heer (2011)
- Dynamic Clustering and Visualization of Smart Data via D3-3D-LSA, Doctoral thesis, Humboldt University of Berlin, L. Borke (2017)
- Q3-D3-LSA: D3.js and Generalized Vector Space Models for Statistical Computing, Handbook of Big data Analytics, Springer Verlag, ISBN 978-3-319-18284-1, L. Borke and W. Härdle (2018)
R Packages
- ctv: CRAN Task Views. R package version 0.8-5. A. Zeileis and K. Hornik (2018)
- github: Provides access to the Github v3 API. R package version 0.9.8. C. Scheidegger (2016)
- rgithubS: Provides access to the GitHub v3 API. Special edition: search, statistics, parsers. R package version 0.9.9. C. Scheidegger and L. Borke (2017)
- taskviewsVA: Visual analytics for CRAN task views. R package version 0.4.0. L. Borke and S. Bykovskaya (2017)
- tm: A framework for text mining applications within R. R package version 0.7-5. I. Feinerer and K. Hornik (2018)
- TManalyzer: Provides IR tools in 3 text mining models: BVSM, GVSM(TT) and LSA. It is complemented by metadata analytics and document clustering functionality. R package version 0.6.0. L. Borke (2017)
